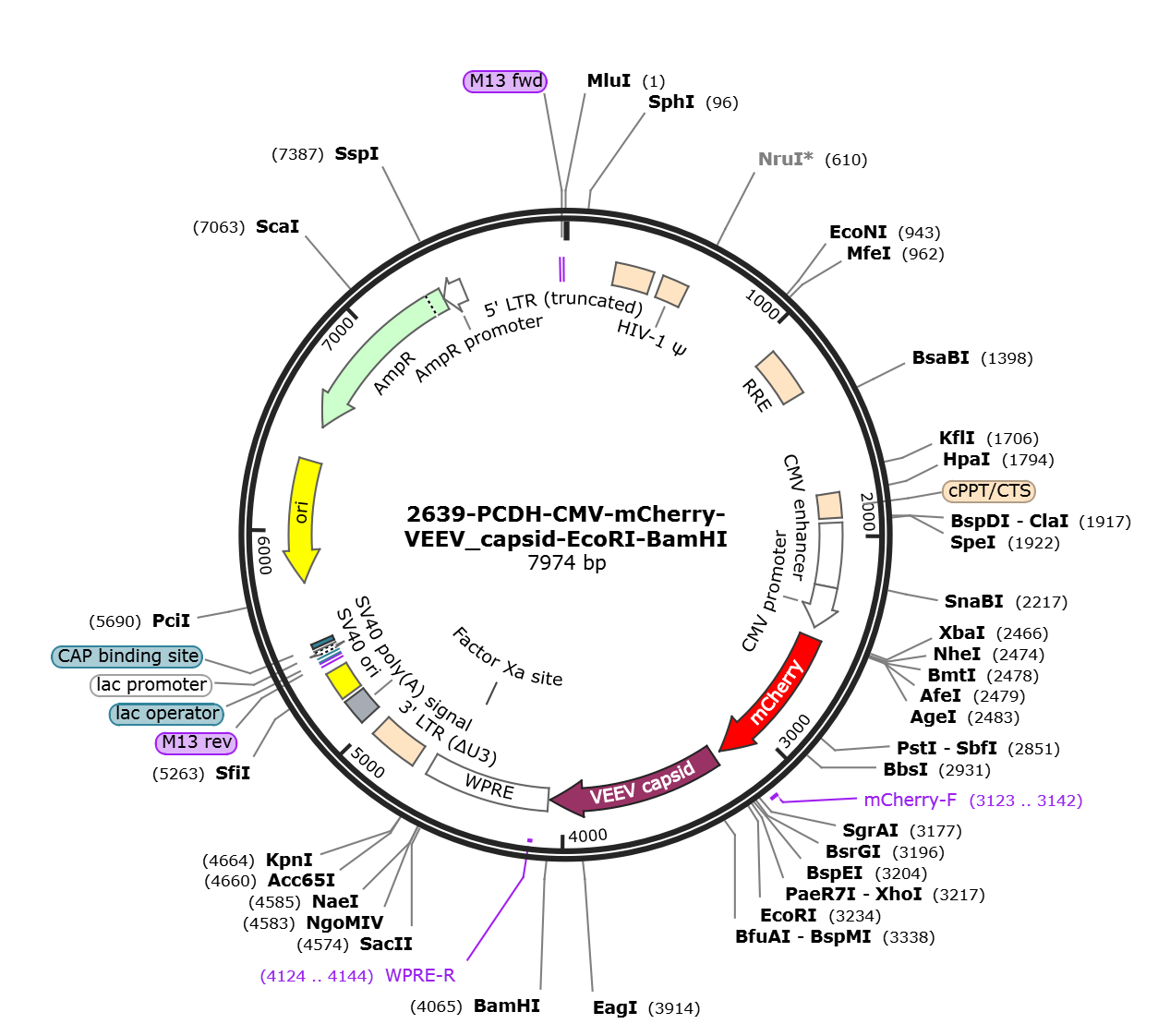

pCDH-CMV-mCherry-VEEV capsid

LOCUS       pCDH-CMV-mCherry-VEEV capsid               7974 bp DNA     circular SYN 15-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7974)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7974
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3123..3142
                     /label=mCherry-F
     CDS             3240..4061
                     /codon_start=1
                     /label=VEEV capsid
                     /translation="MFPYQPMYPMQPMPFRNPFAAPRRPWFPRTDPFLAMQVQELARSM
                     ANLTFKQRRDVPPEGPPAKKKKKDTSQQGGRNQNGKKKNKLVKKKKKTGPPPQKTNGGK
                     KKVNKKPGKRQRMVMKLESDKTFPIMLDGRINGYACVVGGKLFRPLHVEGKIDNDVLSS
                     LKTKKASKYDLEYADVPQSMRADTFKYTHEKPQGYYSWHHGAVQYENGRFTVPKGVGAK
                     GDSGRPILDNQGRVVAIVLGGVNEGSRTALSVVTWNEKGVTVKYTPENSEQW"
     misc_feature    4071..4658
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4124..4144)
                     /label=WPRE-R
     CDS             complement(4542..4553)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4731..4964
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5036..5157
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5176..5311
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5349..5365)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5373..5389
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5397..5427)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5442..5463
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5751..6339)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6510..7370)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7371..7475)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7949..7965
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgttcccgta tcagccgatg tatccgatgc agccgatgcc gtttcgtaat ccgtttgcag
     3301 ccccgcgccg cccgtggttt ccgcgtaccg atccgtttct ggccatgcag gttcaggaac
     3361 tggcccgcag tatggcaaat ctgaccttta aacagcgccg tgatgtgccg ccggaaggtc
     3421 cgcctgcaaa aaagaaaaag aaagatacca gccagcaggg tggccgtaat cagaatggta
     3481 aaaagaaaaa taagctggtt aagaagaaga agaaaaccgg cccgccgccg cagaaaacca
     3541 atggtggcaa aaagaaagtt aataagaagc cgggcaaacg tcagcgtatg gttatgaaac
     3601 tggaaagcga taaaaccttt ccgattatgc tggatggtcg tattaatggt tatgcctgcg
     3661 ttgttggtgg taaactgttt cgcccgctgc atgttgaagg taaaattgat aatgatgtgc
     3721 tgagtagtct gaaaaccaaa aaagccagta aatatgatct ggaatacgcc gatgttccgc
     3781 agagtatgcg cgcagatacc tttaaatata cccatgaaaa accgcagggt tattatagtt
     3841 ggcatcatgg tgcagttcag tatgaaaatg gtcgctttac cgtgccgaaa ggcgttggtg
     3901 ccaaaggtga cagcggccgt ccgattctgg ataatcaggg tcgtgtggtg gccattgttc
     3961 tgggtggtgt gaatgaaggt agtcgcaccg cactgagcgt ggtgacctgg aatgaaaaag
     4021 gtgttaccgt gaaatatacc ccggaaaata gcgaacagtg gtagggatcc aatcaacctc
     4081 tggattacaa aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc
     4141 tatgtggata cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca
     4201 ttttctcctc cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg
     4261 tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca
     4321 ttgccaccac ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg
     4381 cggaactcat cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg
     4441 acaattccgt ggtgttgtcg gggaagctga cgtcctttcc atggctgctc gcctgtgttg
     4501 ccacctggat tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg
     4561 accttccttc ccgcggcctg ctgccggctc tgcggcctct tccgcgtctc cgccttcgcc
     4621 ctcagacgag tcggatctcc ctttggccgc ctccccgccg gtacctttaa gaccaatgac
     4681 ttacaaggca gctgtagatc ttagccactt tttaaaagaa aaggggggac tggaagggct
     4741 aattcactcc caacgaaaat aagatctgct ttttgcttgt actgggtctc tctggttaga
     4801 ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata
     4861 aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta
     4921 gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtagta gttcatgtca
     4981 tcttattatt cagtatttat aacttgcaaa gaaatgaata tcagagagtg agaggaactt
     5041 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     5101 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     5161 tgtctggctc tagctatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     5221 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc
     5281 cagaagtagt gaggaggctt ttttggaggc ctagactttt gcagagacgg cccaaattcg
     5341 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     5401 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     5461 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     5521 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     5581 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     5641 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     5701 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     5761 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     5821 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     5881 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     5941 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     6001 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     6061 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     6121 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     6181 tacactagaa ggacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     6241 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     6301 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     6361 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     6421 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     6481 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     6541 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     6601 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     6661 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     6721 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     6781 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     6841 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     6901 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     6961 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     7021 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     7081 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     7141 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     7201 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     7261 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     7321 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     7381 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     7441 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     7501 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     7561 ccctttcgtc tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg
     7621 gagacggtca cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg
     7681 tcagcgggtg ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta
     7741 ctgagagtgc accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc
     7801 atcaggcgcc attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc
     7861 tcttcgctat tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta
     7921 acgccagggt tttcccagtc acgacgttgt aaaacgacgg ccagtgccaa gctg
//
